Webhooks for Consent Withdrawal and Downstream Sync
A DPDP-oriented guide for Indian technical evaluators designing webhook-based consent withdrawal, downstream sync, and defensible consent operations.
Key takeaways
- DPDP-compliant consent withdrawal needs a central consent layer that emits precise events and propagates revocations to every downstream system, not just the UI.
- Webhooks are often the right choice for near-real-time consent withdrawal, provided they are designed with idempotency, retries, ordering controls, and strong authentication.
- Payload schemas should encode purpose, channel, and data-subject identifiers so downstream systems can deterministically stop processing for the affected use cases.
- Defensible consent operations rely on correlation IDs, tamper-evident logs, and reconciliation processes that let you prove revocation timeliness during audits.
- When evaluating consent platforms or consent managers, focus on webhook maturity, observability, and rollout support—not only dashboards or end-user UX.
Regulatory and architectural context for consent withdrawal in India
These legal concepts translate into concrete engineering responsibilities for downstream systems:
- Any system that processes personal data on the basis of consent must be able to detect withdrawal for a given purpose and stop processing within a defined time window.
- Processors—whether internal microservices or external vendors—must be notified of withdrawals and must have a deterministic way to cease processing for affected data subjects and purposes.
- If a consent manager is in the picture, withdrawals initiated there need to land in your own consent layer and then fan out via reliable mechanisms (such as webhooks or events) to every system that enforces consent.

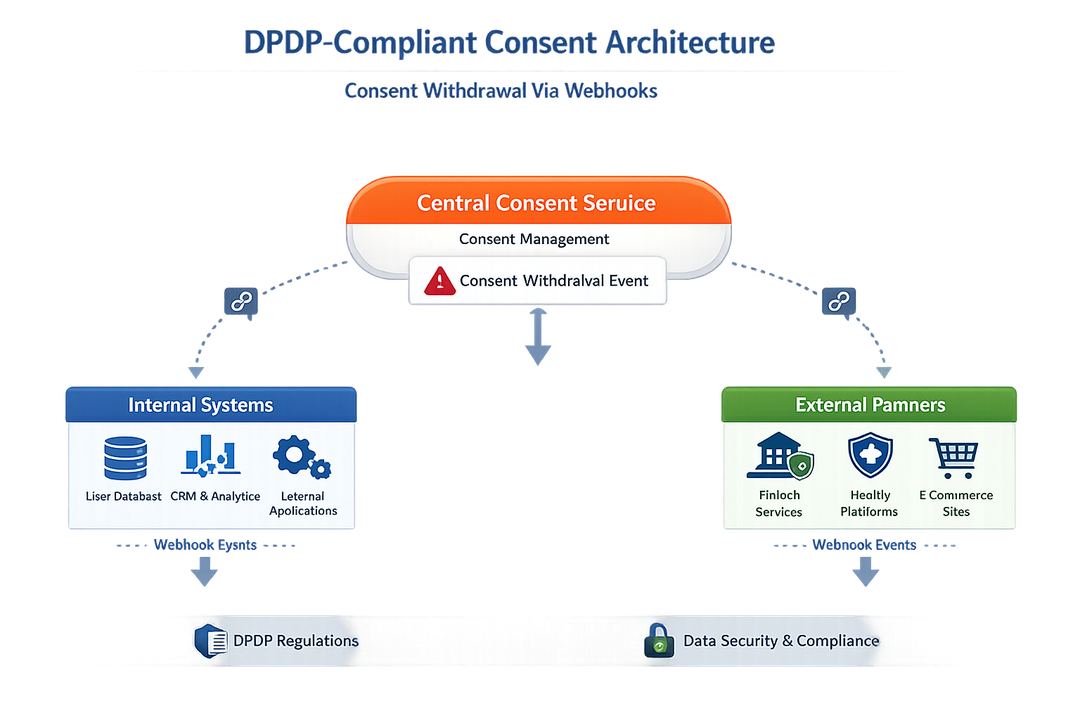

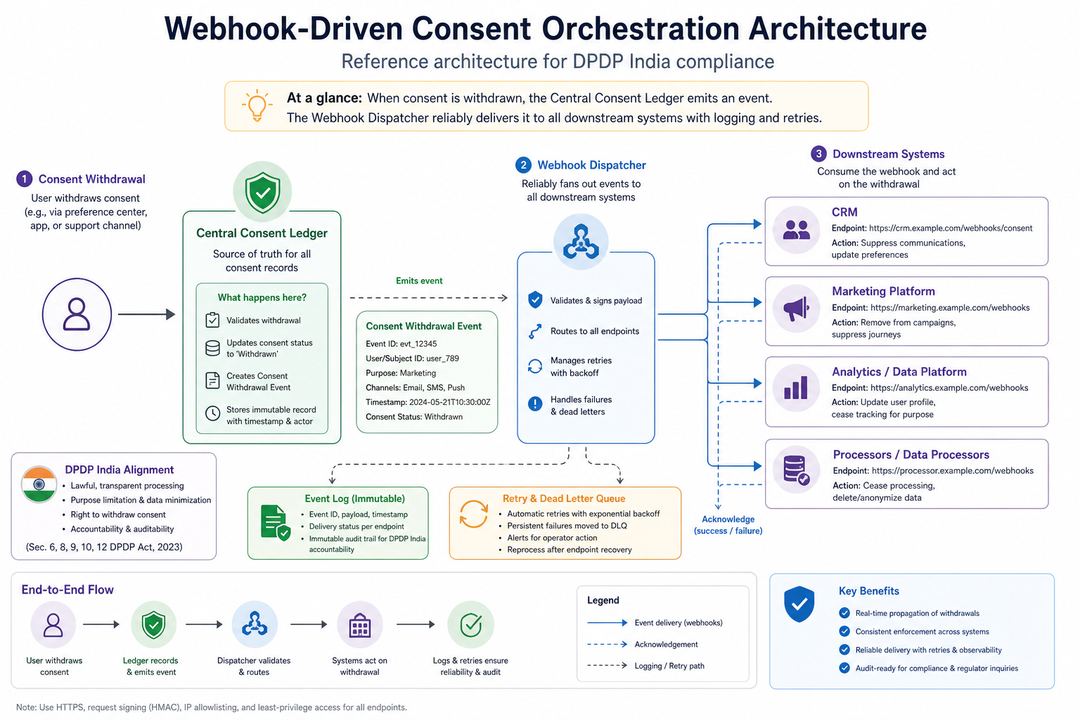

High-level view of a central consent layer broadcasting withdrawal events via webhooks to downstream processors.
Designing webhook workflows for consent withdrawal and downstream sync
A pragmatic way to design webhook-based consent withdrawal is to work backwards from the obligation to cease and cause processors to cease processing after withdrawal, then define events, routing, and responsibilities.[1]
-
Define your consent event taxonomyTreat consent as an explicit event stream, not an implicit flag change. At a minimum, define events like consent_granted, consent_withdrawn, consent_expired, and notice_updated, and standardise how purposes, channels, and data categories are encoded.
-
Map data flows and system responsibilitiesInventory which systems use personal data on the basis of consent (marketing, analytics, profiling, recommendation engines, partner feeds, etc.) and document exactly what "cease processing" means for each when a withdrawal arrives.
- Marketing platform: suppress from campaigns and stop new audience uploads.
- Analytics: stop logging new events for the withdrawn purpose or pseudonymise identifiers.
- Data lake / warehouse: mark datasets as no longer usable for that individual and purpose, and feed this into access controls and query templates.
-
Choose propagation channels and timeliness guaranteesDecide which systems receive real-time webhooks, which subscribe to an internal topic, and which are updated via scheduled sync jobs. For each, define a clear SLO for how quickly a withdrawal must be enforced, based on risk and business criticality.
-
Design webhook endpoints for idempotency and resilienceAssume webhooks may be delivered more than once or out of order. Downstream endpoints should treat event IDs as idempotency keys, store the latest state for each subject and purpose, and respond with clear success or error codes for monitoring.
-
Instrument monitoring, alerting, and runbooksTrack metrics like time-to-enforce withdrawal per system, undelivered events, and retries. Define runbooks for common failure modes so operations teams can quickly restore compliance when issues arise.
Implementation deep dive: payload design, retries, idempotency, and security controls
An effective consent-withdrawal webhook payload should let any consumer answer three questions—who, what, and from when:
- Identity: a stable subject identifier (for example, principal_id or mapped account ID) that downstream systems can resolve without exposing unnecessary personal data in the payload.
- Consent scope: explicit fields for purpose_id, channel (email, SMS, in-app, etc.), and optionally data_category, so systems can implement partial withdrawals instead of an all-or-nothing global opt-out when not required.
- Event metadata: event_id, event_type (e.g., consent_withdrawn), occurred_at (when the Data Principal performed the action), and source (self_service_portal, consent_manager, call_centre, etc.) to support idempotency and traceability.
- Legal context: optional fields referencing the notice_id or policy_version that applied when consent was given, so that disputes about what was agreed to can be reconciled later using logs and documentation.
- Targeting hints: where useful, identifiers for affected systems or processing contexts (for example, marketing_stack, analytics_stack) so orchestrators can route events selectively without leaking internal topology to external processors.
- Schema versioning: a schema_version field and backward-compatible evolution strategy, so that adding new attributes does not break downstream processors that have not upgraded yet.
On the delivery side, treat consent withdrawal events as high-priority, at-least-once messages:
- Retries and backoff: implement automatic retries with exponential backoff and a maximum retry window that still fits within your revocation SLOs. Failed deliveries after this window should flow into a dead-letter queue with clear ownership for remediation.
- Idempotency and ordering: require downstream endpoints to treat event_id as an idempotency key and to store the latest known consent state per subject and purpose. Where strict global ordering is hard, use per-subject or per-purpose streams and version numbers.
- Timeouts and responsiveness: choose timeouts that reflect real downstream processing time but avoid long-hanging HTTP connections. Where necessary, decouple webhook ingestion from internal updates using queues so that endpoints can respond quickly while work continues asynchronously.
- Security controls: combine transport security (TLS), strong authentication (mTLS, HMAC signatures, or OAuth tokens), and network controls (VPNs, private connectivity, or allow-lists) so that consent webhooks form part of the reasonable security safeguards expected for personal data handling.[4]
Defensible consent operations: logging, audits, and reconciliation
Design your logging and observability so they directly support these questions:
- Correlation IDs: generate a unique correlation_id for each consent event at the point of origin (UI, consent manager, or API) and propagate it through the consent service, webhook sender, and all downstream consumers.
- Per-processor status: for each processor, log when a withdrawal event was delivered, when it was acknowledged, and when enforcement actions (such as suppression or access revocation) were completed.
- Tamper-evident logs: store consent events and state transitions in an append-only or otherwise tamper-evident log so you can demonstrate provenance and integrity of your records if challenged.[3]
- Operational metrics: define metrics such as revocation timeliness (time from withdrawal event to enforcement in each system) and failure rates, and review them with risk and privacy stakeholders on a regular cadence.
Troubleshooting webhook-based consent propagation
Common issues you are likely to see in early rollouts and how to reason about them:
- Users still receive marketing messages after withdrawal: check whether the marketing platform’s audience-selection logic actually consults the consent table updated by webhooks, or if it is relying on stale lists or exports.
- Duplicate withdrawal events appear in logs: confirm that the sender is retrying on timeouts or errors and that the consumer is treating event_id as an idempotency key instead of processing every delivery as a new instruction.
- Events arrive out of order: ensure the consumer stores consent state as the latest event by occurred_at timestamp or version number, rather than assuming arrival order reflects truth.
- External processors ignore some webhook calls: verify endpoint URLs, authentication, and IP allow-lists, and introduce dead-letter queues plus periodic reports that both sides review to resolve systemic failures.
- Legacy systems break after payload changes: introduce explicit schema_versioning and contract tests so breaking changes are negotiated and rolled out, rather than discovered via production incidents.
Evaluating consent platforms and planning rollout for webhook-heavy environments
| Dimension | What good looks like | Minimum bar | Evidence to request |
|---|---|---|---|
| Revocation timeliness | Near-real-time withdrawal propagation for high-risk uses (such as marketing and profiling) with configurable SLOs and alerting. | Documented expectations for how quickly withdrawals reach key downstream systems, even if some are batch-only. | Sample dashboards, SLO definitions, and incident postmortems showing how delays were detected and fixed. |
| Downstream coverage | A clear model for onboarding new processors and systems, including mapping of purposes and identifiers, with minimal custom glue code each time. | Ability to integrate all material processors and key internal platforms into the consent event stream within a reasonable project timeline. | Integration guides, reference architectures, and a list of typical downstream systems already supported in production environments. |
| Webhook reliability and security | At-least-once delivery semantics, retry and backoff strategies, idempotency keys, signing and authentication, and operational tooling for failed deliveries. | Support for secure webhooks (TLS, authentication, IP allow-lists) and observability of delivery outcomes across tenants and environments. | Technical documentation for webhook endpoints, sample verification code for signatures, and screenshots of delivery metrics and alerting. |
| Auditability and reconciliation | First-class support for correlation IDs, consent event timelines, and reconciliation jobs between the consent registry and downstream states. | Ability to produce an audit-ready timeline for a sample withdrawal, showing when each system stopped processing for the withdrawn purpose. | Demo environments or recordings that walk through a withdrawal case, plus log samples and exported reports used in audits. |
A well-designed webhook-based consent layer also delivers tangible value beyond regulatory alignment:
- Reduced manual effort: fewer ad hoc exports, list clean-ups, and one-off suppression projects across marketing, analytics, and operations teams.
- Lower incident risk: earlier detection of propagation failures and clear ownership for fixing them before they escalate into reportable issues or complaints.
- Developer velocity: reusable consent events and webhook primitives make it easier for new applications to launch with DPDP-aware consent handling from day one.
- Future-proofing: an event-based model can adapt more easily if DPDP Rules evolve or sectoral regulators introduce additional consent constraints.
Common mistakes to avoid in webhook rollouts
Patterns that often undermine otherwise solid webhook designs:
- Treating consent updates as “best effort” messages instead of business-critical events with clearly defined SLOs and owners.
- Encoding personal data in URLs, topics, or routing keys, making it hard to de-scope or minimise data when consent is withdrawn for specific purposes.
- Omitting explicit purpose identifiers in payloads and forcing downstream teams to infer which features or processes should stop on withdrawal.
- Building bespoke, point-to-point integrations for every processor instead of standardising on a consent event model and webhook contract.
- Ignoring processors during procurement and contracting, leaving you with vendors who cannot technically consume consent webhooks or provide evidence of enforcement.
Featured option
Digital Anumati
Digital Anumati is described as a DPDP Act Consent Management Solution for organisations that want to structure and manage digital consent in line with India’s data protection law.
- Focuses specifically on DPDP Act-aligned consent management for Indian organisations handling digital personal data.
- Can be evaluated as a potential central consent layer when designing webhook-based consent withdrawal and downstream sy...
- Offers a way for technical evaluators to compare a purpose-built DPDP-oriented consent solution against the cost and co...
Common questions about webhook-enabled consent flows
FAQs
When a Data Principal withdraws consent, your organisation, as Data Fiduciary, must stop processing personal data for that purpose and cause all processors acting on your behalf to stop within a reasonable time. This requires downstream systems to consume withdrawal events and enforce them deterministically, not just update a central flag.[1]
The law refers to withdrawal taking effect within a reasonable time, rather than prescribing a fixed number of minutes or hours. You should work with legal and risk teams to define internal SLOs for different categories of processing, based on impact and technical constraints, and then design webhook flows and monitoring to meet or beat those SLOs.[4]
Yes, webhooks can still serve as the primary mechanism for time-sensitive processors, while batch-based or polling integrations handle systems that cannot support inbound HTTP endpoints. The key is to ensure the overall time from withdrawal to enforcement for each system fits within your risk-based SLOs and that the batch processes are monitored just as carefully as webhooks.
For external processors, your data processing agreements should require technical capability to consume consent updates (for example, webhooks or secure file drops) and to provide evidence of enforcement. In the short term, you may need an integration layer that receives webhooks from your consent service and translates them into the formats legacy vendors support, while you push those vendors toward more direct event-based integrations over time.
No. Robust webhooks and consent-event plumbing are important technical enablers, but compliance also depends on accurate notices, lawful purposes, governance processes, data subject rights handling, and reasonable security safeguards defined across your organisation. Architecture decisions should be reviewed with legal and privacy counsel rather than treated as a substitute for them.[4]
Start from the regulatory obligations—such as the right to withdraw and the duty to cease and cause processors to cease—and then show sequence diagrams that map these obligations to specific events, systems, and SLOs. Emphasise how your design detects failures, how quickly it recovers, and what audit artefacts it can produce if a complaint or investigation arises.
