Reference Architecture: From Consent Banner to Consent Ledger
A business-style technical guide for technical evaluators that covers reference architecture— from consent banner to consent ledger, implementation details, and the controls needed for defensible consent operations.
Why consent architecture now matters for Indian B2B organizations
An end-to-end consent architecture solves several pressing problems for technical leaders:
- Regulatory exposure: reducing the risk of gaps between what your banner shows, what your systems do, and what you can prove to a regulator or board.
- Enterprise complexity: ensuring that choices made on a website, app, or with a sales rep are consistently enforced across tag managers, CDPs, CRMs, data lakes, and downstream SaaS tools.
- Customer trust: enabling transparent preference management for global customers who expect DPDP and GDPR-grade controls, even in B2B relationships.
- Operational resilience: making consent a first-class data product, with SLAs, monitoring, and clear ownership, rather than a fragile script embedded by marketing.
Key takeaways
- Treat consent as a core data product with its own service, ledger, and SLAs, not as a front-end widget owned only by marketing.
- DPDP and GDPR expectations push you toward architectures that can prove who consented, for what purposes, under which policy, and when that changed.
- A consent ledger is the backbone that turns scattered choices across channels into a coherent, auditable record.
- Technical evaluators should focus on event models, integrations, controls, and evidence when assessing CMPs and data platforms.
Regulatory and risk requirements that shape consent architecture
At a high level, these legal requirements translate into concrete technical objectives for your architecture:
- Valid, granular consent: capture consent in a way that is specific to clearly defined purposes (e.g., analytics, advertising, product improvement) and not bundled or coerced, with records of what information was presented at the time of choice.[3]
- Demonstrable consent: maintain evidence that can be shown to regulators, customers, and auditors, including timestamps, identifiers, and policy versions that applied when the decision was made.
- Withdrawal and updates: ensure there is a reliable way for users to withdraw or change consent and that these changes are propagated across all systems that rely on consent signals, within a defined latency window.
- Purpose limitation and minimization: enforce that data collected under a given consent is used only for the agreed purposes and that systems can prevent or flag uses that exceed the original scope.
- Records and accountability: support internal records of processing activities and audit trails that show how consent influenced decisions such as which tags fired, which vendors received data, or which campaigns were activated.
| Regulatory theme | DPDP / GDPR focus | Technical objective |
|---|---|---|
| Valid consent conditions | Freely given, specific, informed, unambiguous; clear affirmative action; easy withdrawal. | Consent UIs and APIs must support fine-grained purpose choices, explicit actions, versioned notices, and withdrawal paths embedded in products. |
| Demonstrable consent and records | Burden on the organization to show when and how consent was obtained or withdrawn. | Central consent ledger with immutable or append-only records, linked to policy versions, identity, and processing activities. |
| Purpose limitation and minimization | Processing must stay within the scope of specified, legitimate purposes; collect only necessary data. | Policy store that maps purposes to systems and vendors, with enforcement points in tag managers, SDKs, ETL, and APIs to constrain data flows. |
| Data subject rights and withdrawal | Right to withdraw consent and to request information about processing based on consent. | APIs and event pipelines that propagate consent changes quickly; queries that can reconstruct historical processing states for access reports and investigations. |
Key concepts and components in an end-to-end consent stack
- Consent banner or UI: the visible entry point on web and mobile where users see notices, make initial choices, and access preference centers. Often provided by a consent management platform (CMP) SDK.
- Consent management platform (CMP): manages consent UI, purpose configuration, vendor lists, and sometimes basic storage of consent states. In more advanced setups, it publishes consent events to your backend rather than acting as the system of record itself.
- Tag manager and client SDKs: enforce consent in the browser or app by deciding which tags, pixels, or SDK calls are allowed to run for a given consent state (e.g., block advertising tags until ad consent is given).
- Identity and profile layer: maps device identifiers (cookies, mobile IDs) and channel identifiers (email, CRM IDs) into unified profiles, so consent can be understood at the right identity level (e.g., account vs individual contact).
- Consent service: a backend API and processing layer that ingests consent events from all channels, validates them against policy, resolves identities, and updates the consent ledger and caches used for enforcement.
- Consent ledger: the authoritative, append-only or immutable store of consent events and derived current state, capable of reconstructing the timeline of consents and withdrawals for any data principal or identifier.
- Policy and purpose store: central configuration of purposes, legal bases, notice templates, and vendor mappings, referenced by the consent service and UI to ensure consistent semantics across channels and geographies.
- Enforcement points: controls embedded into tag managers, SDKs, API gateways, message queues, ETL pipelines, and downstream tools that check consent state before collecting, sharing, or activating data.

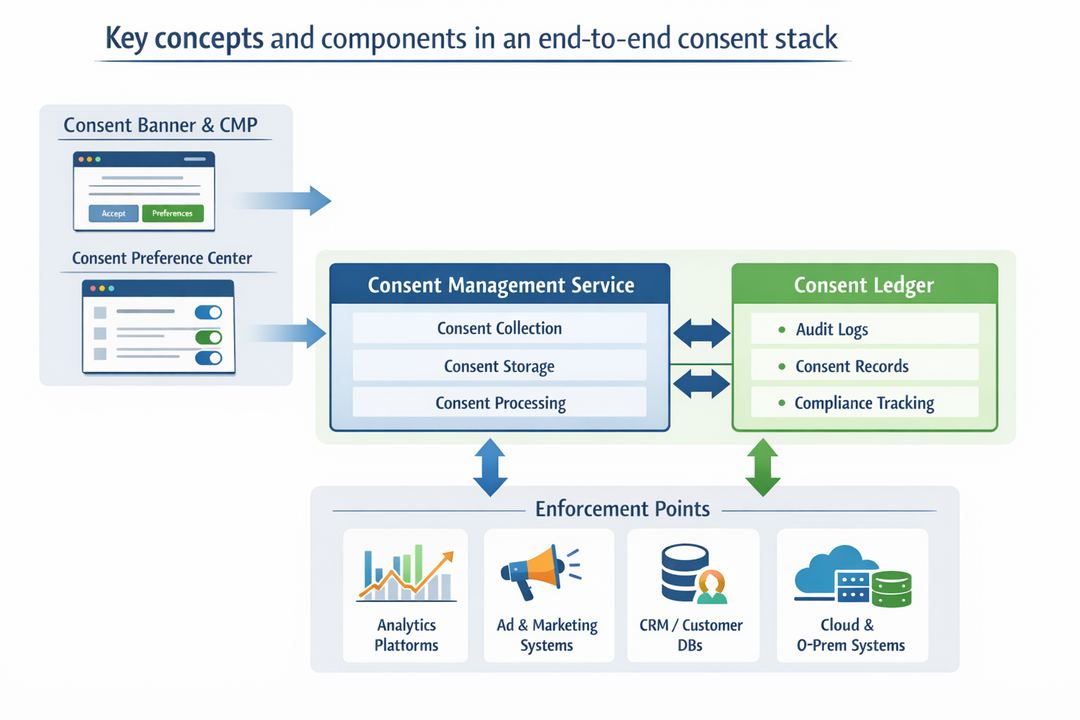

High-level architecture of a modern consent stack, with user-facing UIs feeding a central consent service and ledger, and enforcement points across downstream systems.
Reference architecture: from consent banner to consent ledger
End-to-end consent data flow from banner to ledger and back to enforcement:
-
User views banner and purposesThe CMP SDK loads with minimal default settings (e.g., strictly necessary cookies only). It fetches configuration from the policy store: purposes, descriptions, vendor lists, and applicable jurisdiction rules for the user’s context (e.g., India vs EU).
-
User action generates a consent eventWhen the user accepts, rejects, or customizes choices, the CMP emits a structured event containing identifiers (device ID, provisional user ID), purposes and values (granted, denied), jurisdiction, UI language, and the notice and policy versions presented at that moment.
-
Event is sent to the consent service via SDK or edge APIThe CMP sends the consent event to your backend over HTTPS (browser-to-origin) or via an edge function or tag manager that forwards it to the consent service. To minimize latency, you can acknowledge quickly and process heavy work asynchronously.
-
Consent service validates and enriches the eventThe consent service validates the payload against schema and policy (e.g., no unknown purposes), enriches it with identity resolution (mapping cookie to user or account where possible), determines the legal basis per purpose, and assigns a server-side event ID and timestamp.
-
Event is written to the consent ledger (append-only)The validated event is appended to the consent ledger. No in-place updates are performed. The ledger can compute or store a derived current state per identity and purpose, but the raw history remains intact for audit and reconstruction of past states.
-
Current consent state is cached for fast enforcementTo avoid round-trips to the ledger for every tag or API call, the consent service maintains a low-latency cache (e.g., key-value store) keyed by identifiers and channel. This cache exposes simple read APIs such as canCollect("analytics", userId) to enforcement points.
-
Client and server enforcement points consume consent stateThe tag manager, SDKs, API gateway, ETL jobs, and downstream tools query the consent state (or receive push updates) before sending or activating data. For example, the tag manager blocks advertising tags until ad consent is true for that device or profile.
-
Monitoring and audit log tie UI, events, and processing togetherSystem logs correlate consent events with enforcement decisions (e.g., which tags were suppressed), enabling you to answer questions like: At time T, for user U, what data was collected and under which purpose and legal basis.

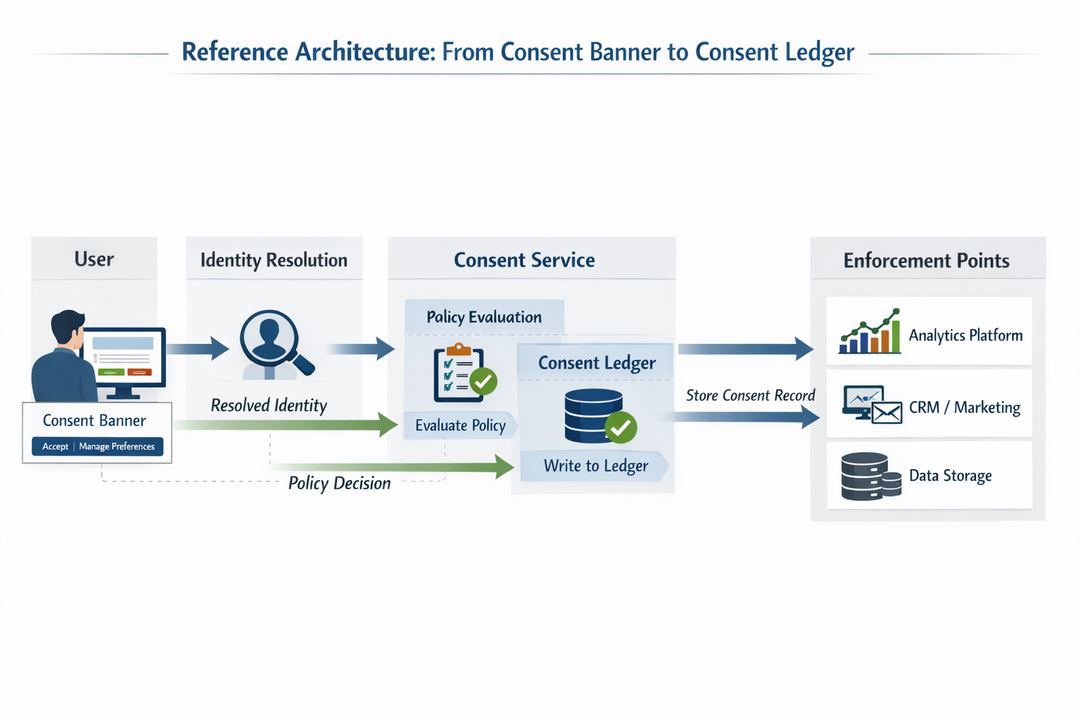

Visual walkthrough of the reference consent data flow, highlighting where identity resolution, policy evaluation, and ledger writes occur.
Key takeaways
- Every consent interaction should result in a structured event that reaches a central consent service, not just a local cookie flag.
- The consent ledger should be append-only, with separate mechanisms for fast reads so that front-end and backend enforcement are not bottlenecked by storage.
- Enforcement points must be explicit consumers of the consent state, with simple, well-documented APIs that product and data teams can rely on.
Designing the consent ledger and data model for auditability
| Field | Description | Examples / considerations |
|---|---|---|
| event_id | Globally unique identifier for the consent event, generated server-side. | UUID or ULID; useful for deduplication and correlating logs across systems. |
| principal_id and principal_type | Identifier of the data principal (e.g., user, contact, account) and the type of identity being referenced. | Could be a pseudonymous internal ID; consider separate records for account-level vs individual-level consent and how they interact. |
| device_id and channel_id | Identifiers for the device or channel through which the consent was expressed, where applicable. | Cookie ID, mobile advertising ID, app instance ID, call center recording ID, or form submission ID to allow channel-specific debugging and tracing. |
| purposes | List of purposes included in this event, each with its own status (granted, denied, withdrawn) and legal basis if relevant. | Store as an array of objects with purpose_id, status, legal_basis, and optional vendor list or processing context references for fine-grained analysis. |
| policy_version and notice_version | Versions of the consent policy and notice text that were presented when the choice was made, enabling reconstruction of what the user saw and agreed to at the time. | Maintain separate semantic versions for backend policy logic and human-readable notices or UI templates; link to document archives where needed for audits. |
| jurisdiction and locale | Regulatory and language context for the consent decision, used to interpret which rules applied (e.g., DPDP vs GDPR) and which notice text was shown. | Jurisdiction may be inferred from residency, contract, or geo IP; in B2B, link to contract terms or data processing agreements if they differ by region or customer segment. |
| source and channel_metadata | Where the consent event originated (web banner, app preference center, call center, offline form) and any channel-specific metadata needed for traceability. | Include call center agent ID, campaign ID, page URL, or feature name to support targeted investigations and UI improvements when issues arise. |
Architecturally, the consent ledger should support the following characteristics:
- Append-only history: each change results in a new event; you never overwrite or delete past events except under explicit retention or erasure policies that themselves are logged and auditable.
- Derived current state: maintain materialized views or snapshots that represent current consent per identity and purpose, derived from the underlying event log, to support fast reads and analytics.
- Time-travel queries: ability to query consent state at a given historical time, which is critical when investigating incidents or reconstructing what processing was permissible at the moment of a data flow.
- Retention and minimization: configurable retention rules by jurisdiction and data category, ensuring that consent history is kept as long as necessary for accountability but not indefinitely without justification.
Enforcement, integrations, and multi-channel considerations
Key enforcement and integration patterns to account for:
- Web and tag managers: implement a default-deny posture for non-essential tags. The tag manager reads consent state from a first-party cookie or a lightweight API and conditionally fires tags. Ensure that any server-side tagging setup also respects the same state rather than bypassing it.
- Mobile apps: integrate the consent service via SDKs or REST APIs, caching consent state locally with clear expiry. Handle scenarios where the device is offline and must reconcile queued events once connectivity resumes.
- Server-side APIs and microservices: embed consent checks in API gateways or shared libraries that upstream services use before storing or sharing data for a particular purpose, minimizing duplicate logic and drift across teams.
- Data pipelines, warehouses, and lakes: build consent-aware transformations and views. For example, maintain separate tables or views limited to records that have marketing consent and ensure BI or activation tools use those views as their source of truth for campaigns.
- Call centers and offline channels: provide scripts, forms, or IVR flows that capture consent in structured form (including versions of scripts used), then feed those into the same consent service, ideally in near real time. Link call recordings or scanned documents to ledger events as supplementary evidence where needed.
- Multi-jurisdiction logic: centralize jurisdiction rules in the policy store so that enforcement points do not hard-code whether consent is required for a given purpose, letting you adapt to DPDP, GDPR, and other regulations with configuration rather than code changes.

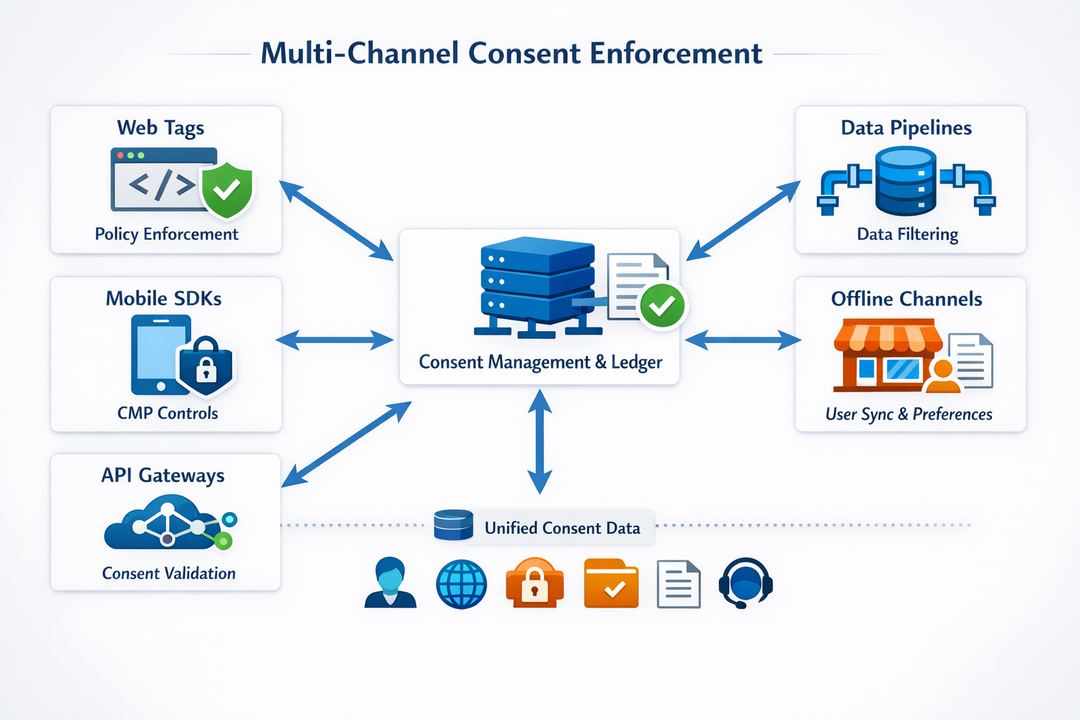

Multi-channel consent enforcement view, with different channels pulling from a common consent service and ledger while applying channel-specific controls.
Controls and monitoring for defensible consent operations
| Component | Key controls | Typical evidence |
|---|---|---|
| Consent banner / CMP configuration | Change management, approvals from privacy and legal for new purposes and vendors, localization checks for notices, testing in staging before production rollout. | Configuration repository or export, approval records, screenshots, and test logs showing correct behavior by jurisdiction and language. |
| Consent service and APIs | Authentication and authorization for write and read APIs, input validation, rate limiting, monitoring for failed writes or schema violations, documented SLAs and escalation paths for incidents. | API specs, access control lists, monitoring dashboards, incident runbooks, and post-incident reports showing how consent-related outages were handled. |
| Consent ledger and storage platform | Role-based access control, encryption at rest and in transit, backup and restore procedures, retention policies, change and deletion logging, periodic access reviews for privileged accounts. | Access review reports, backup test results, retention configuration, and sample audit queries demonstrating reconstruction of consent history for selected identities and periods. |
| Enforcement points (tags, SDKs, gateways, ETL) | Technical safeguards that prevent data collection or activation when consent is absent, automated tests validating enforcement logic, approvals for new integrations with personal data flows. | Test results showing blocked calls without consent, configuration files or code snippets for enforcement logic, and integration onboarding checklists including consent verification steps. |
| Monitoring, audits, and reporting layer | Dashboards tracking consent coverage and error rates, periodic reconciliations (e.g., between consent ledger and downstream tools), internal audits of consent operations and incident response readiness. | Monitoring dashboards, reconciliation reports, internal audit findings, and remediation plans with owners and due dates for identified gaps in consent operations. |
Practical monitoring and governance practices that raise confidence in your consent stack:
- Define service-level indicators (SLIs) such as percentage of requests with valid consent state available, latency of consent checks, and rate of consent write failures, and monitor them alongside business metrics.
- Run targeted reconciliations, for example: sample active marketing contacts in your CRM and verify that each has corresponding marketing consent in the ledger (or a documented legal basis other than consent).
- Establish a clear RACI for consent operations spanning legal, privacy, security, data engineering, and product, so ownership of controls, monitoring, and remediation is unambiguous.
Key takeaways
- Controls and monitoring turn a good consent architecture into a defensible one that can withstand regulator, customer, and board scrutiny.
- Evidence is as important as functionality: design your stack so you can easily answer who, what, when, where, and under which policy for any consent decision.
- Align consent controls with existing enterprise frameworks to avoid duplicative governance and make privacy risk discussions more concrete for leadership.
Evaluation checklist for CMPs and consent infrastructure
Key evaluation dimensions and questions to ask vendors (or of your internal build proposal):
- Functional coverage: Does the solution support granular purposes, multi-language notices, preference centers, and multi-channel capture (web, app, offline) aligned with your DPDP and GDPR obligations?
- Data model and ledger fit: Can the platform expose or integrate with a consent ledger-like model (event history plus current state) with identifiers, purposes, policy versions, and jurisdictions as first-class concepts?
- Integration and enforcement: How does it integrate with your tag manager, mobile apps, API gateway, data warehouse, marketing automation, CRM, and third-party tools? Does it offer SDKs, webhooks, or streaming to propagate consent state reliably?
- Latency and performance: What are typical and worst-case latencies for consent writes and reads? Can the system scale to your peak traffic without degrading product performance or losing events?
- Governance and audit capabilities: What native logging, reporting, and export capabilities exist to support investigations, internal audits, and regulator queries? Can you easily retrieve complete consent histories for specific users or periods of time?
- Multi-jurisdiction support: How does the product handle differing requirements across India, EU, and other key markets? Are rules policy-driven (configuration) or hard-coded (requiring code changes for new regulations)?
- Security and privacy-by-design: Does the architecture include appropriate encryption, access control, and segregation of duties for consent data, and does it align with your organization’s security standards and certifications?
| Dimension | Weight (1-5) | Scoring guidance (1-5 scale) |
|---|---|---|
| End-to-end coverage (capture to enforcement) | 4-5 (high impact) | 1 = UI-only CMP with limited integrations; 3 = solid web and app coverage but manual work for backend; 5 = well-documented patterns and connectors across your full data stack. |
| Auditability and evidence quality | 4-5 (high impact) | 1 = limited logs, no event history; 3 = partial history, manual exports; 5 = full event history with self-service query and export capabilities for investigations and audits. |
| DPDP and GDPR configurability | 3-4 (medium-high impact) | 1 = single global configuration; 3 = regional configs but limited flexibility; 5 = purpose and policy definitions that can be tuned per jurisdiction without code changes. |
| Engineering fit and extensibility | 3-4 (medium-high impact) | 1 = closed system with few APIs; 3 = good REST APIs and webhooks; 5 = rich SDKs, streaming integrations, and clear extension points for custom logic and identity resolution. |
Key takeaways
- Make the consent ledger and enforcement patterns explicit criteria in vendor evaluations, not afterthoughts hidden behind UI demos.
- Score vendors and in-house options on their ability to produce high-quality, easily retrievable evidence, not just their checkbox support for DPDP or GDPR.
Implementation roadmap and stakeholder alignment
A pragmatic roadmap that technical evaluators can use to plan or assess an implementation:
-
Discovery and current-state assessmentInventory all points where personal data is collected and activated (web, apps, CRM, marketing tools, data platforms). Map existing consent mechanisms, legal bases, and gaps (e.g., systems with no consent awareness or missing audit trails). Prioritize high-risk flows that involve cross-border transfers or sensitive data categories.
-
Target architecture and data model designAlign privacy, legal, and engineering on purpose taxonomy, identity strategy, and consent event schema. Design the consent service and ledger model, including APIs, SLAs, and integration patterns with key systems (tag managers, CDP, data warehouse). Decide what will be built vs bought and document trade-offs transparently for leadership.
-
Pilot on a contained but meaningful scopeSelect one or two digital properties and a subset of downstream systems (e.g., primary analytics and marketing tools) as the first end-to-end pilot. Implement banners, consent service, ledger, and enforcement. Validate UX, performance, and auditability with real data and internal testing before expanding coverage.
-
Migrate legacy consent and integrate additional channelsGradually onboard additional web properties, apps, and offline channels. Design a migration strategy for existing consent data: reconcile formats, resolve identity gaps, and document assumptions or limitations in how legacy consent is interpreted in the new model.
-
Scale-out, optimize, and embed into governanceExpand the architecture to cover more processing purposes and regions, tune performance and cost, and integrate consent metrics into privacy and risk dashboards. Institutionalize change management and internal audit patterns so consent operations become a routine part of how you run platforms.
Critical stakeholders and typical responsibilities in Indian B2B organizations:
- Data protection officer / privacy lead: owns interpretation of DPDP and GDPR requirements, approves purpose taxonomy, notices, and high-level architecture choices from a compliance perspective.
- Security and risk teams: ensure that consent data and systems meet security standards, participate in threat modeling, and integrate consent incidents into enterprise incident response processes.
- Product and marketing: define user journeys, decide where and how choices are presented, and commit to respecting consent in backlog prioritization and experimentation practices.
- Platform, data, and integration engineering: implement the consent service, ledger, enforcement points, and integration patterns, and own SLAs, monitoring, and day-to-day reliability of the consent stack.
Troubleshooting real-world consent rollouts
Common issues that surface in production and how technical teams can address them:
- Symptom: Tags still fire after users reject consent. Fix: Validate that the tag manager is reading the right consent key (and from the correct domain) and that server-side tagging flows are not bypassing consent checks used on the client.
- Symptom: Inconsistent consent state between web and mobile. Fix: Review identity resolution and mapping of device IDs to user profiles; implement a reconciliation process that updates device-level state when authenticated consent changes and ensures caches expire appropriately.
- Symptom: High latency when loading consent banners. Fix: Move heavy logic (e.g., policy evaluation, geo lookups) server-side, aggressively cache configuration at the edge, and ensure CMP assets are served from performant CDNs under your control where feasible.
- Symptom: Difficulty answering regulator or customer questions about historical consent. Fix: Introduce or strengthen the consent ledger, standardize event schemas, and create predefined queries and reports that support typical investigation scenarios.
Common mistakes in consent architecture design
Patterns that often cause problems later in audits or operations:
- Treating the CMP as the only system of record, without exporting structured events into your own ledger or data platform where you can join them with processing activities and logs.
- Encoding consent state in free-text fields or loosely defined JSON, instead of using a clear schema with stable purpose and policy identifiers that engineering and auditors can rely on over time.
- Hard-coding regulatory logic (e.g., when consent is required) into front-end code or individual microservices, making it expensive to adapt to new rules or jurisdictions.
- Ignoring offline and B2B sales channels in early phases, leading to fragmented consent stories where CRM or account-based outreach is disconnected from digital consent records.
Common questions about consent architecture in practice
FAQs
You can technically store consent in any database, but a dedicated ledger design makes it much easier to support audits, time-travel queries, and consistent semantics across teams. The key properties you want are append-only history, clear schema for identifiers and purposes, and good queryability. Many organizations implement this on top of familiar technologies (e.g., relational or document databases) but treat the consent ledger as its own product with stricter controls and governance.
From an architectural perspective, treat legal basis as a field alongside purpose in your consent (or legal basis) events. For some purposes, the basis may be consent; for others, legitimate interests or contract. Enforcement points should check both the purpose and the applicable legal basis before activating data. Governance teams should define when consent is required versus when other legal bases are appropriate and ensure that this logic is captured centrally in the policy store rather than scattered in code.
Design offline flows to produce structured events similar to digital ones. For example, call center applications can present scripted consent prompts that map to specific purposes and policy versions, then send consent events via APIs to the consent service together with call IDs and agent IDs. Batch uploads from forms or events should go through the same validation pipeline. Where recordings or signed documents are required, store references to those artifacts in the ledger event’s metadata or in linked systems for later retrieval.
Start by cataloguing all existing consent data sources (CMP exports, CRM flags, marketing tools, contracts) and mapping their meanings to your new purpose and policy taxonomy. For each source, define transformation rules and confidence levels. When importing, record the original source and any assumptions in ledger metadata, and consider tagging migrated events differently from new events. Communicate limitations clearly to legal and privacy teams, especially where you cannot fully reconstruct original notices or policy contexts.
If you design for caching and asynchronous processing, performance impact can be limited. The common pattern is to use fast, local or edge caches for read-heavy enforcement calls and to decouple heavy writes to the ledger via queues or streaming. You should budget latency for consent checks into your overall performance SLAs and test under peak conditions, but a well-architected consent service should not be noticeably slower than typical authentication or feature-flag checks.
DPDP-specific nuances such as requirements for detailed notice, withdrawal mechanisms, and demonstrable consent can be modeled as configuration and policy rather than separate code paths. In a global architecture, use the policy store to define when consent is required, what information must be shown, and how withdrawal must behave for each jurisdiction. The consent service should record which jurisdictional policy variant applied for each event so that later audits or investigations can interpret the record correctly in light of local rules.
