How to Map Data Flows Before Implementing a Consent Platform
A DPDP-focused guide for technical evaluators in India on mapping personal-data flows, designing consent-aware architecture, and choosing the right consent platform.
Key takeaways
- DPDP compliance and sectoral guidelines make accurate data-flow mapping a prerequisite, not a nice-to-have, before deploying a consent platform.
- Maps must cover all systems, data stores, and sharing relationships—including offline and batch flows—to be operationally useful.
- Consent-aware maps encode DPDP concepts such as purpose, legal basis, retention, and data principal rights in a form engineers can implement.
- Well-structured maps become a requirements checklist for evaluating consent platforms and designing integration patterns.
- Starting with high-risk journeys and iterating keeps data-flow maps and consent policies maintainable over time.
Why DPDP‑ready data‑flow mapping is essential before a consent platform
- Regulatory alignment: DPDP obligations apply wherever personal data is collected, stored, or shared. Mapping flows shows where lawful bases and consent apply, and what notices and rights you must support.
- Sector expectations: in areas like digital lending, regulators expect explicit borrower consent, need-based data collection, and auditable trails of how information was used across the lending stack.[5]
- Architectural correctness: maps prevent you from integrating a consent platform only at the ‘edges’ while batch jobs, analytics pipelines, or internal APIs continue processing personal data without consent checks.
- Stakeholder alignment: diagrams give legal, security, product, and data teams a shared view of how personal data moves today and how consent controls will change that.

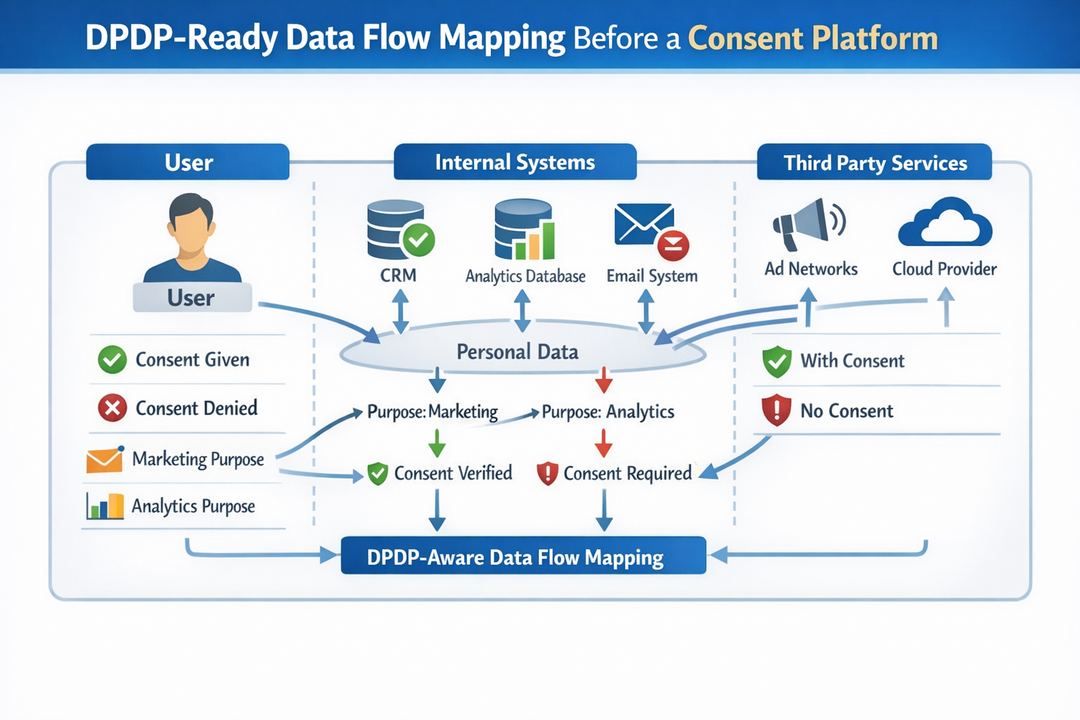

Conceptual infographic of data flows between users, internal systems, and third parties, annotated with consent states and purposes.
Taking stock of your current personal‑data ecosystem
Use this checklist to complete a first-pass discovery that is thorough but still practical for busy engineering and data teams.
-
Define scope and objectivesDecide which business units, products, and jurisdictions you will map in this cycle. A sensible starting point is revenue-critical or highly regulated journeys such as onboarding, lending, or large-scale marketing.
-
List data principals and key journeysCapture who you process data about—customers, prospects, employees, partners, vendors—and list the top journeys for each, such as onboarding, servicing, upsell, and support.
-
Catalogue collection touchpointsFor each journey, document web forms, mobile apps, SDKs, chatbots, branch terminals, call centres, and any offline capture that eventually enters digital systems.
-
Map systems and data storesLink touchpoints to back-end services, CRMs, core platforms, data warehouses, data lakes, logs, and file stores. Note which systems are authoritative for particular data elements such as KYC data or communication preferences.
-
Identify processors and data-sharing relationshipsList external processors and partners—analytics, marketing, cloud providers, KYC vendors, credit bureaus, account aggregators—and how data is exchanged (APIs, SFTP, message queues, files).
-
Assign owners and rate riskFor each system or integration, record a business owner and a coarse risk rating based on volume, sensitivity, and how hard it would be to honour DPDP rights such as access, correction, and withdrawal.
- Customer-facing apps and sites: marketing sites, self-service portals, mobile apps, chatbots, and in-product experiences.
- Core business platforms: CRM, order management, core banking or policy administration systems, and HR or learning platforms.
- Data and analytics stack: event collectors, streaming platforms, warehouses or lakes, BI tools, and ML training or serving environments.
- Engagement and growth tools: email and SMS providers, marketing automation, in-app messaging, and A/B testing platforms.
- Operations and support: ticketing systems, call-centre platforms, knowledge bases, field-service apps, and document-management tools.
- Shadow and ad hoc tooling: spreadsheets, internal macros, small bespoke services, and third-party SDKs embedded by individual teams.
| Area | Examples of systems | Typical personal data | Risk signals for consent |
|---|---|---|---|
| Customer acquisition | Marketing sites, landing pages, ad platforms, lead-management tools | Identifiers, contact details, device IDs, tracking cookies | Third-party tags, cross-site tracking, remarketing, profiling based on behaviour |
| Onboarding and KYC | Digital onboarding journeys, KYC vendors, document-management systems | ID numbers, biometrics, addresses, financial and employment data, photographs | Highly sensitive and regulated data, reuse for analytics or marketing, long retention periods |
| Digital lending or credit journeys | Loan origination systems, underwriting engines, credit-bureau and bank-statement integrations | Income, bank statements, transaction histories, behavioural and device data, alternate data sources | High regulatory scrutiny, profiling, potential adverse decisions like loan denial, significant audit expectations |
| Support and operations | Contact-centre platforms, ticketing tools, chat systems, field-service apps | Call recordings, chat logs, location data, problem descriptions, attachments from customers | Mix of online and offline capture, free-text fields, long retention, difficulty redacting or deleting specific data points |
| Analytics and data platform | Data warehouse or lake, event streams, BI tools, ML training pipelines | Raw and derived events, pseudonymised identifiers, segmentation attributes, model outputs and features | Hard to implement deletion or withdrawal, risk of repurposing data without consent, complex lineage across pipelines |
| Third-party SDKs and integrations | Mobile SDKs, web pixels, third-party SaaS connectors, payment gateways, social login providers | Device identifiers, behavioural events, payment and identity information, profiling data shared with external providers | Shadow data flows outside your direct control, cross-border transfers, difficulty demonstrating consent for third-party enrichment or marketing |
Designing consent‑aware data‑flow maps that legal and engineering can both use
A three-level mapping approach usually gives enough detail without overwhelming stakeholders.
-
Create a high-level context diagramShow data principals, main systems, key third parties, and the types of personal data moving between them. Keep labels business-friendly so non-technical stakeholders can validate it quickly.
-
Add data-flow diagrams for priority journeysFor journeys like onboarding or digital lending, map how data moves step by step between touchpoints, services, and data stores, including asynchronous flows such as message queues and nightly batch jobs.
-
Define a consent and purpose vocabularyStandardise a small set of purpose codes (for example, onboarding, fraud detection, marketing) and associate each with a DPDP legal basis, usually consent or another lawful ground. Reuse these codes across diagrams and, later, in technical policy definitions.
-
Annotate flows with DPDP attributesFor each arrow in your diagrams, capture the purpose codes, legal basis, retention duration, data categories, and whether consent is required or another DPDP ground applies.
-
Link diagrams to owners and documentationEach system or processing activity in the map should have an owner, plus references to policies and risk assessments. That way, the map becomes the front door into your wider privacy documentation set, not a disconnected drawing.
- Consent quality: DPDP requires consent to be free, specific, informed, unconditional, and unambiguous, based on a clear affirmative action. Represent this by distinguishing mandatory from optional purposes and capturing how and where the affirmative action happens (for example, checkbox, button, digital signature).[3]
- Purpose limitation: for each processing activity, list only those purposes that are genuinely necessary. If a flow uses the same data for both service delivery and marketing, represent those as separate purposes with potentially different consent requirements.
- Legal basis: indicate whether processing relies on consent or another DPDP ground (for example, where processing is necessary to provide a service that the data principal has requested). This helps avoid over-collecting consent where the law allows other bases.
- Data principal rights: flag where a data principal should be able to exercise rights such as access, correction, erasure, and withdrawal of consent, and trace how those requests propagate through downstream systems.[1]
Translating data‑flow maps into technical controls and audit‑ready evidence
Use your maps to drive a concrete set of engineering and operations decisions.
-
Define consent states and attributesAgree on a canonical consent model—such as not_asked, requested, granted, denied, revoked—and attributes including data principal identifier, purposes, channel, timestamp, and notice version. This model should be shared across services.
-
Centralise consent decisionsImplement a consent service or repository that records decisions and exposes APIs or events. Other systems read from this source of truth instead of storing their own fragmented copies.
-
Integrate collection pointsUpdate web, mobile, and branch applications to call the consent service whenever consent is collected, updated, or withdrawn, so the same consent state is visible to all downstream systems.
-
Enforce at access and processing layersAdd checks in APIs, batch jobs, and analytics or ML pipelines that read the consent state before accessing or using personal data for a given purpose. Where immediate enforcement is not possible, design compensating controls and clearly document them.
-
Implement revocation and expiry handlingWhen consent is withdrawn or expires, trigger workflows that update downstream systems, remove or quarantine data from analytics sets where required, and adjust any segments used for marketing or profiling.
-
Log and monitor consent eventsGenerate structured logs for consent collection, use, and withdrawal events, and feed them into monitoring and reporting so anomalies can be detected and audit evidence is easy to extract.
- User-facing and collection controls: consent screens, notices, preference centres, and channel-specific UX patterns that ensure consent is captured correctly and can be changed easily.
- Decision and policy layer: central services or rule engines that evaluate whether a requested processing action is permitted given current consent and other legal bases.
- Integration and enforcement mechanisms: SDKs, API gateways, service meshes, ETL jobs, and message consumers that enforce decisions close to where data is accessed or processed.
- Monitoring, alerting, and reporting: dashboards, scheduled reports, and alerts that use consent logs to track opt-in rates, withdrawal patterns, and policy violations.
| DPDP / sector expectation | What you should be able to show | Example technical controls |
|---|---|---|
| Consent meets DPDP requirements (free, specific, informed, unconditional, unambiguous, with clear affirmative action).[3] | Per-purpose consent records with timestamps, channel, notice text or version, and a clear indication of the action taken by the data principal. | Dynamic consent UIs, a central consent store, and signed or tamper-evident consent tokens passed between systems. |
| Personal data is used only for the purposes for which it was collected or another valid legal ground applies. | Mappings from each processing activity to one or more documented purposes and a justification for any secondary use. | Purpose-aware access controls in APIs and data platforms, and data sets partitioned or tagged by purpose to prevent silent scope creep. |
| Data principals can withdraw consent easily, and withdrawal is honoured across systems within a reasonable time. | Logs of withdrawal requests, downstream updates, and confirmation that uses for withdrawn purposes have stopped. | Event-driven revocation workflows, consent-aware marketing suppression lists, and backfills that clean historical data where required. |
| Need-based data collection and explicit consent for sensitive digital lending use cases.[5] | Documentation showing why each data element is necessary, plus borrower consents tied to specific data accesses in the lending stack. | Scoped data-access APIs in lending journeys, input validation in loan-origination systems, and restricted feature flags for optional data. |
| Accountability through documented data flows, processing records, and risk assessments.[4] | Up-to-date data-flow maps linked to processing registers and risk or impact assessments for higher-risk activities. | Version-controlled mapping artefacts, privacy review checklists in the SDLC, and mandatory mapping updates for new integrations. |
Using data‑flow maps to evaluate and roll out a consent platform
- Coverage of channels and journeys: can the platform support all the collection points and journeys in your maps (web, mobile, branch, call centre, third-party portals)?
- Integration patterns: does it integrate cleanly with your APIs, message buses, data warehouses, and marketing or lending platforms without brittle custom glue code?
- Policy and purpose modelling: can you represent your purpose codes, legal bases, jurisdictions, and channels in its policy model without workarounds?
- Performance and resilience: will consent checks add acceptable latency, and does the platform fail gracefully so that outages do not break critical customer journeys?
- Governance and observability: can you delegate admin roles, review configuration changes, and extract reports or logs needed for internal and external audits?
A phased rollout aligned to risk gives you quick wins and reduces the chance of unpleasant surprises.
-
Prioritise high-risk journeysUse your risk ratings and regulatory exposure to choose journeys such as digital lending, intensive profiling, minors’ data, or cross-border processing for the first wave, where expectations are highest and impact of failure is greatest.
-
Pilot the consent platform on a limited scopeImplement the platform for a single journey or product line, integrating key collection points, the central consent state, and at least one major downstream system such as a CRM or loan-origination system. Use this pilot to refine your maps and assumptions.
-
Expand by system and data domainGradually connect additional systems—analytics, marketing, data platforms, and partner integrations—using your maps as the source of truth for what needs to integrate next and how consent state should propagate.
-
Embed governance and maintenanceDefine ownership for maps, policies, and platform configuration, and add mapping and consent reviews to your SDLC and change-management processes so new projects cannot bypass the consent control plane.
Considering DPDP-focused consent solutions
Digital Anumati
Digital Anumati is a consent management solution positioned around India’s Digital Personal Data Protection (DPDP) Act, aimed at helping organisations manage consent in line with...
- Positioned specifically as a DPDP Act consent management solution for organisations operating in India.
- Useful reference point if you prefer a consent platform positioned around the DPDP Act rather than adapting a purely gl...
- Can serve as one of the options to benchmark when turning your data-flow maps into concrete consent-platform selection...
Resolving common consent‑platform implementation issues
- Issue: maps miss systems owned by smaller teams. Fix: cross-check against your CMDB, cloud accounts, and finance or procurement records to surface unregistered SaaS and internal services.
- Issue: the consent platform cannot enforce decisions in a legacy system. Fix: insert a proxy layer (API gateway, integration service, or ETL job) that enforces consent before data reaches the legacy component.
- Issue: inconsistent naming of purposes across teams. Fix: create a central purpose catalogue with IDs and descriptions, and require teams to use these identifiers in both diagrams and code.
- Issue: audit logs are incomplete or scattered. Fix: standardise log formats for consent events and route them to a central logging or SIEM platform with appropriate retention.
Frequent mistakes when mapping data flows
- Implementing a consent platform before understanding existing data flows, leading to partial coverage and false confidence.
- Focusing only on online and real-time flows while ignoring batch jobs, analytics pipelines, and data exports between systems or to partners.
- Treating consent as a single checkbox instead of modelling separate purposes, channels, and journeys in your maps and technical design.
- Allowing maps to become stale by not updating them when new journeys, integrations, or regulatory expectations appear.
Common questions about consent‑aware data‑flow mapping
FAQs
You do not need a perfect map before starting vendor conversations, but you should complete a first-pass map of your highest-risk journeys and systems. Without that, it is very hard to judge whether a platform will actually cover your real data flows.
Many teams map and evaluate in parallel: they refine diagrams as they learn more from pilots, while using those same diagrams to validate integration options and configuration in candidate platforms.
Aim for a level of detail where you can answer, for any processing activity: who the data principals are, what personal data is involved, which purposes and legal bases apply, which systems and third parties are involved, and how long the data is retained.
If an engineer can implement consent checks from the diagram, and your legal or compliance team can explain the processing to a regulator using the same artefact, you are at the right level of detail.
Concepts such as lawful basis, purpose limitation, and withdrawal of consent typically become data fields and rules in your systems: purpose codes, consent states, retention policies, and access-control decisions enforced in APIs and data platforms.
Your maps define where those concepts apply—at which services, queues, or databases—and your consent platform or policy layer evaluates and distributes decisions so that every component behaves consistently.
For legacy or offline processes, focus on control points you can influence: ETL jobs feeding the legacy system, API gateways in front of it, or manual procedures that reference a central consent register before using data.
Document these constraints in your maps and risk assessments, and look for opportunities to replace or modernise systems that are structurally unable to respect consent in a timely and consistent way.
At minimum, review maps and consent policies annually, and whenever you launch a major new product, integrate a new category of third party, or face significant regulatory or organisational change. Make map updates part of your change-management and architecture-review processes so new projects cannot go live without updating the consent and data-flow view.
Your data-flow maps and control requirements should drive the evaluation of any consent solution, including DPDP-focused offerings such as Digital Anumati. Use them to frame questions about channels, integration patterns, consent-state propagation, and reporting.
Rather than assuming a platform will handle everything out of the box, validate how it would operationalise your specific diagrams and where you may still need custom integrations, governance processes, or complementary tooling.
